ALUMINUM
COMPOSITE
METAL PANELS
The Mission
“At Alucoil® we are developing products for low or even zero energy consumption buildings. We have also implemented in-house measures to ensure that production processes are more efficient, consume less energy and, therefore, contaminate less.”
ALUCOIL PRODUCTS
LARCORE® A2
ALUMINUM HONEYCOMB PANELS FOR ARCHITECTURAL ENCLOSURES.
“larcore® A2 is supplied in thicknesses of 6 mm and 14 mm (both panels), with specific installation systems, and in other thicknesses for installation with universal systems such as rivets, screws or adhesive.”
larcore® A2 14 mm
Made up of aluminium sheets of 1 mm on the exterior face in aluminium alloy 5005 EN 573-3 and 1 mm on the interior face in aluminium alloy 5754 EN 573-3 joined by an aluminium honeycomb core.
larcore® A2 6 mm
Made up of aluminium sheets of 0.7 mm on the exterior face and 0.5 mm on the interior, both in aluminium alloy 5005 EN 573-3 joined by an aluminium honeycomb core.

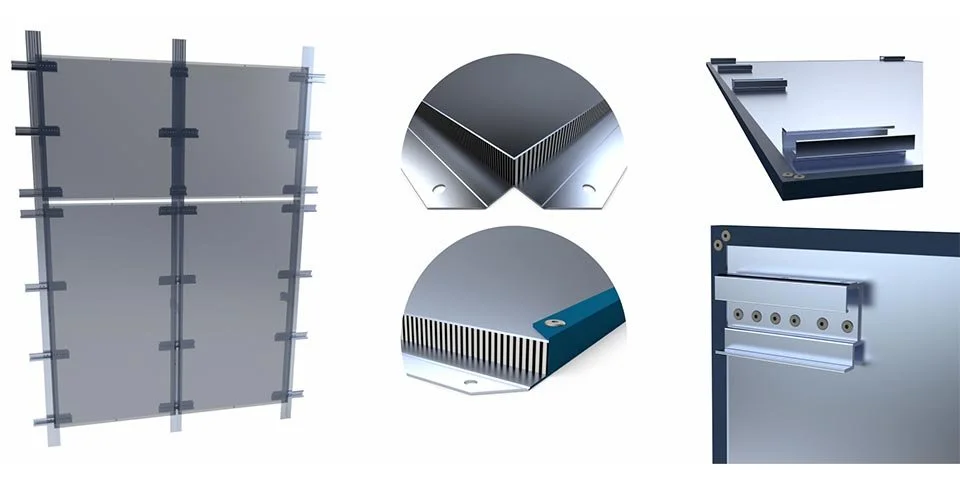

“Alucoil® has developed the system Hidetech® PRO for the larcore® A2 panels with a total thickness of 14 mm. An option using staples that links the edged panels with a very small substructure.”
LARSON®
COMPOSITE PANELS IN ALUMINUM FOR ARCHITECTURAL ENCLOSURES

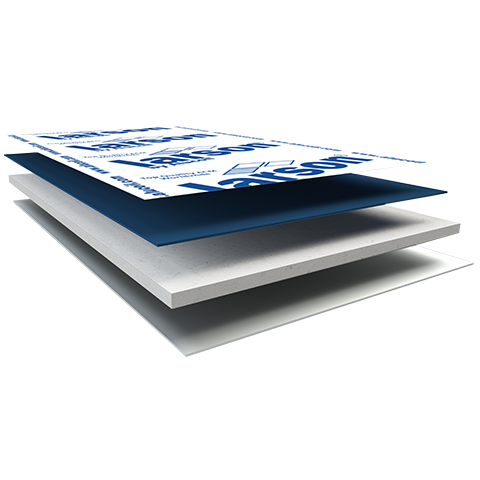

“larson® FR & larson® A2 are products for cladding architectural façades. Metal panels made up of two sheets of aluminum alloy 5005, joined by a mineral core FR or A2. The mineral core FR delays combustion for a classification B-s1, d0 in accordance with the regulation EN 13501-1 and the mineral core A2 for use in the countries whose standards prevent the use of any of other type of composite panel that does not have classification A2-s1, d0 in accordance with the regulation EN 13501-1.”
larson® offers to high quality finishes with liquid paints.
Quality dual-layer PVDF (Kynar or Kylar as the main brands) with the first coat with a nominal thickness of 31µ
fluorlac® brand of LUMIFLON FEVE paint developed by Alucoil® available in the larson® range from 75 m², in any colour, in matte, satin and high gloss finishes in just 2-3 weeks.
